AIRIS "Madrid"

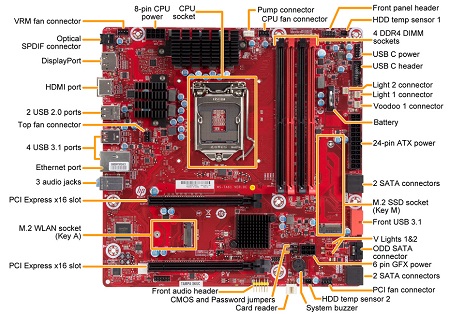

HP 880 specs, Tampa motherboard specs

It's actually free to install Windows 10 without a license key; however, functionality is limited (?)
All the personalization features will be locked when you do not activate Windows 10.
You will be periodically prompted to activate.

get an ISO and use

• Rufus

• download W10 ISO, or put W10 on USB (using Media Creation Tool) -> does not run on W7 / T440

fix -> remove "Secure Boot" : video

Opening the BIOS Setup Utility :

1. turn off the computer and wait five seconds.
2. turn on the computer, and then immediately press the esc key repeatedly until the Startup Menu opens.
3. press F10 to open the BIOS Setup Utility.

HP techcenter

On Rufus, set :

• Partition scheme := MBR ; (millor GPT)
• Target system := BIOS ; (millor UEFI)

On BIOS, set :

• compatibilidad heredada := enabled ;
• arranque seguro := disabled ;

Now we have Windows install, but no keyboard nor mouse

1. install Ubuntu (USB stick)

   b22@192.168.1.37

2. resize HDD :
   1. boot to a LiveCD or LiveUSB drive in try me mode
   2. start "Terminal" with Ctrl+Alt+"T"
   3. load gparted (should be installed by default, you can apt-get it if it's not)
   4. resize your partitions (right click, click resize, follow the instructions)
   5. click Apply and sit back while it does the job
   6. reboot, taking out the USB stick or CD when it tells you to

   ask ubuntu

3. get W10 : Win10_21H2_Spanish_x64.iso from uSoft

4. create a bootable USB using UNetbootin :
   1. sudo add-apt-repository ppa:gezakovacs/ppa
   2. sudo apt-get update
   3. sudo apt-get install unetbootin

   unetbootin

5. install W10 from Ubuntu

6. install Grub for Ubuntu

   To install and fix grub, you need LiveCD or LiveUSB of Ubuntu.
   Once you load Live Ubuntu, Open Terminal and fire following commands to install boot-repair and let it fix the Grub.

   sudo add-apt-repository ppa:yannubuntu/boot-repair && sudo apt-get update sudo apt-get install -y boot-repair && boot-repair

   After installation, boot-repair will get automatically launched.
   Make sure to select “recommended repair” option to repair grub. Reboot.

   infotech

Just in case, create a bootable Ubuntu USB, to modify existing Ubuntu : itsfoss

If Startup Disk Creator fails, you can use Ventoy - how-to

Use winver to display your version, or go to "Computer" + right click + Properties, or select "Start" -> "Settings" -> "System" -> "About"

W10 Home ES, versio V21H2

• Libre Office
• mouse USB -
• teclat USB - K120
• pantalla HDMI - Benq PD 2500Q
• cable HDMI - amazon
• cable Shuko - amazon

Airis homepage

PDF :

Esquema

 isa 0    System timer
 isa 1    Kbd
 isa 3    COM2
 isa 4    COM1
 isa 6    Floppy
 isa 8    system CMOS/real time clock
 isa 9    uS ACPI
 pci 11   AVerMedia, WDM Audio capture
 isa 12   uS PS/2 mouse
 isa 13   Numeric data processor
 isa 14   Primary IDE channel
 isa 15   Secondary IDE channel
 pci 16   RV200
 pci 17   Realtek RTL 8139 PCI Ethernet adapter
 pci 17   Intel 82801 BA/BAM SMBus Controller - 2443 (Intel SMBus 2.0 driver)
 pci 17   SoundMAX Integrated Digital Audio
 pci 18   NEC PCI to USB Open Host controller
 pci 19   NEC PCI to USB Open Host controller
 pci 19   Intel 82801 BA/BAM SMBus Controller - 2442
 pci 21   AVerMedia, WDM Video capture
 pci 23   NEC PCI to USB Enhanced Host controller B1
 pci 23   SoftK56 Data Fax Voice Speakerphone CARP

• Logitech X-530 speakers. 5.1

  Total RMS power : 70,1 watts.
  Green = Front. Black = Rear. Orange = Center.

  Sound Blaster Audigy SE, model SB0570. 24-bit, 96 KHz, 100 dB SNR.

  Drivers XP : Sound Blaster Audigy SE : SBAX_PCDRV_LB_2_18_0001.exe, SBAX_WBUP2_LB_2_09_0016.exe

  It might be a signal problem - you may need sound encoded for 5.1 channels.

  Once you have restarted, the last thing you have to do is go to Programs, Creative, Creative Audio Console. Once there, click the speakers tab and select the kind of speakers you have, like.mine are 5.1 - MARE SURE TO LEAVE UNCHECKED THE BOX THAT SAYS SYNCHRONIZE WITH MICROSOFT WINDOWS CONTROL PANEL. That is very important. That box should not be checked! Once you have done both these things, close the dialogue box. Your speakers should now be working, with surround sound.

  What is CMSS and how to use it?

  Creative MultiSpeaker Surround (CMSS) is part of the EAX technology supported by the Sound Blaster audio cards such as Sound Blaster Live!, Sound Blaster Live! 5.1 series, Sound Blaster Audigy series, and Sound Blaster Audigy 2 or later series. It can upmix stereo sources such as MP3, WMA, or Wav, to 4.1/5.1/6.1/7.1 channels depending on your speaker setup and sound card model. CMSS Music mode creates a convincing 5.1 channel surround soundfield from typical stereo sources, whether they are Dolby Surround encoded or not. It works well with Dolby Pro Logic, WAVE, AVI and MIDI program material. In essence, CMSS Music mode puts you "on the stage" for the music's performance, surrounding you with the performance.

  url, url

  Ideal para fuentes de audio estéreo.

• Web Cam : Logitech QuickCam Messenger + QuickCam version 10.A -> url

• USB disk : Iomega, Desktop Hard Drive, 500 GB, 7200 RPM, USB 2.0 (480 Mbits/seg transfer rate), memory cache 8 MB.
  P/N 31641800-R, Model MDHD500-U, S/N J6AG42A780.
  Homepage

BIOS

Per accedir a la BIOS, s'ha de polsar F5 mentre es fa IPL ...

Know your hardware

lspci cat /proc/interrupts

Factura pro-forma (P700243951)

 PB P4 Intel 850E S-478 RAMBUS Maryville2 ... ... 144,90
 CPU Pentium-4 2.53 GHz 512 Kb 533 Mhz s478 . ... 244,00 (??? 533 Mhz ???)
 DD 60 GB UDMA 7200 rpm Seagate ... ... ... . ...  85,00
 RAMBUS RIMM 128 MB PC800 (x2) ... ... ... .. ... 100,00
 SVGA ATI Radeon 7500 64 MB DDR TV+DVI ... .. ... 126,90
 DVD 16x Lite-On bulk ... ... ... ... ... ... ...  38,90
 Reg. CD 40x12x48 LG bulk + software Nero ... ...  48,90
 Monitor LCD TFT 17" Airis multimedia ... ... ... 450,00
 Teclado + raton BTC 2001 Radio frecuencia .. ...  36,90
 Modem / Fax interno PCI Rockwell ... ... ... ...  11,40
 Tarjeta Sonido SB 5.1 digital OEM ... ... .. ...  36,90
 Altavoces Inspire 5.1 5300 OEM ... ... ... . ...  98,50

26/11/02 : pay (1.487 * 1,16) = 1.725 €

2/12/02 : albarà 179.421, S.N. 151.579

 REYCO INTEGRAL, S.L.
 C/ BARO, 23-25 LOCAL
 08921-Santa Coloma de Gramanet.
 NIF: B - 61563581

ST 360021A has 117.231.408 sectors (per drive), i un sector té 512 bytes : 60.022.480.896 bytes (60 GB).

Teoria :

• P1 - primària de 4 GB i NTFS : Windows 2000 i Boot Magic.
  Així puc fer una imatge que cap en un CD (amb compresió BZ2)
• P2 - primària de 4 GB : Windows 98 per Jocs.
• P3 - primària de 10 GB i EXT3 : Linux "/" i LILO.
• P4 - extesa de 42 GB
  • L1 - 10 GB i FAT32, per compartir dades (as MP3, fotos) entre W2K i Linux
  • L2 - 2 GB i SWAP, per Linux Swap.
  • L3 - 10 GB i NTFS - imatges i programes de W2K.
  • L4 - 2 GB i EXT3 - Linux "/usr", "/tmp", etc
  • L5 - 18 GB - spare by now.

Praxis :

• P1 - 2.047 MB - FAT - DOS 7.0 (to have C:\TEMP to install W2K)
• P2 - Extended
  • L1 - 1.953 MB - NTFS - W2000
• P3 - 15 GB - NTFS - W2KDATA - Caesar III, Blade Runner, fotos, MP3
• P4 - spare.

DMESG says : [20052005] hda: ST3200822A hdb: ST360021A hdd: GCR-8523B Partition Magic says : Disk # 1, 200 GB, CHS [16709/255/63] : (units = cylinders of 16065 * 512 bytes) C: . NTFS 130.967 MB Active Primary hda1 * Extended 59.812 None Primary hda2 F: FAT32 102 Logical hda5 G: NTFS 59.710 Logical hda6 Disk # 2, 60 GB, CHS [7297/255/63] : (units = cylinders of 16065 * 512 bytes) D: INICI FAT16B 2.039 MB Primary hdb2 * Extended 35.189 Primary hdb3 I: NTFS 1.953 Logical hdb5 J: NTFS 10.001 Logical hdb6 K: IMATGES FAT16B 2.039 Logical hdb7 L: NTFS 21.195 Logical hdb8 * SWAPSPACE2 Linux Swap 518 MB Primary hdb1 * Linux Ext2 19.485 Primary hdb4 More detailed Report is : PowerQuest PartitionInfo 8.0 -- Windows NT/2000 Version. Date Generated: 05/20/05 15:22:22 =========================================================================================================== Partition Information for Disk 1: 190,779.7 Megabytes Volume PartType Status Size MB PartSect # StartSect TotalSects =========================================================================================================== C: NTFS Pri,Boot 130,967.4 0 0 63 268,221,177 ExtendedX Pri 59,812.3 0 1 268,221,240 122,495,625 EPBR Log 102.0 None -- 268,221,240 208,845 F: FAT32 Log 101.9 268,221,240 0 268,221,303 208,782 EPBR Log 59,710.3 268,221,240 1 268,430,085 122,286,780 G: NTFS Log 59,710.3 268,430,085 0 268,430,148 122,286,717 =========================================================================================================== Partition Information for Disk 2: 57,239.4 Megabytes Volume PartType Status Size MB PartSect # StartSect TotalSects =========================================================================================================== D:INICI FAT16B Pri,Boot 2,039.5 0 1 63 4,176,837 Unallocated Pri 7.8 None -- 4,176,900 16,065 ExtendedX Pri 35,189.3 0 2 4,192,965 72,067,590 EPBR Log 1,953.2 None -- 4,192,965 4,000,185 I: NTFS Log 1,953.2 4,192,965 0 4,193,028 4,000,122 EPBR Log 10,001.4 4,192,965 1 8,193,150 20,482,875 J: NTFS Log 10,001.4 8,193,150 0 8,193,213 20,482,812 EPBR Log 2,039.5 8,193,150 1 28,676,025 4,176,900 K:IMATGES FAT16B Log,Boot 2,039.5 28,676,025 0 28,676,088 4,176,837 EPBR Log 21,195.1 28,676,025 1 32,852,925 43,407,630 L: NTFS Log 21,195.1 32,852,925 0 32,852,988 43,407,567 *:SWAPSPACE2 Linux Swap Pri 517.7 0 0 76,260,555 1,060,290 Linux Ext2 Pri 19,485.1 0 3 77,320,845 39,905,460 Linux [fdisk /dev/hda + "p"] says : Device Boot Start End Blocks System Id /dev/hda1 * 1 16696 134110588+ HPFS/NTFS 7 /dev/hda2 16697 24321 61247812+ Win95 Ext'd (LBA) f /dev/hda5 16697 16709 104391 Win95 FAT32 b /dev/hda6 16710 24321 61143358+ HPFS/NTFS 7 Linux [fdisk /dev/hdb + "p"] says : Device Boot Start End Blocks System Id /dev/hdb1 4748 4813 530145 Linux Swap 82 /dev/hdb2 * 1 260 2088418+ FAT16 6 /dev/hdb3 262 4747 36033795 Win95 Ext'd (LBA) f /dev/hdb5 262 510 2000061 HPFS/NTFS 7 /dev/hdb6 511 1785 10241406 HPFS/NTFS 7 /dev/hdb7 * 1786 2045 2088418+ FAT16 6 /dev/hdb8 2046 4747 21703783+ HPFS/NTFS 7 /dev/hdb4 4814 7297 19952730 Linux 83 PM 7.0 says : ******** * * FAT 2.000 MB [DOS70] * * ******** ******** extesa 35.200 MB * ++++ * * + + * NTFS 2.000 MB [W2K] * ++++ * * * * ++++ * * + + * NTFS 10.000 MB [W2KDATA] * ++++ * * * * ++++ * * + + * FAT16 2.000 MB [IMATGES] * ++++ * * * * ++++ * free 20.000 MB * + + * * ++++ * * * ******** ******** * * FAT32 20.000 MB * * ********

 hda : hda1 hda2 < hda5 hda6 >
 hdb : hdab hdb2 hdb3 < hda5 hda6 hda7 hda8 > hdb4

 hda
  hda1 : NTFS - 134 GB                  C:       [130 GB]
  hda2 : extended
   hda5 : FAT32 - 104 MB                F: FAT32 [100 MB]
   hda6 : NTFS - 61 GB                  G: NTFS  [60 GB]

 hdb
  hdb1 : Linux Swap - 530 MB
  hdb2 : FAT16 - 2.088 MB (2 GB)        D: FAT16 [2 GB]     INICI
  hdb3 : extended
   hdb5 : NTFS - 2 GB                   I: NTFS  [2 GB]
   hdb6 : NTFS - 10.240 MB (10 GB)      J: NTFS  [10 GB]    W2KDATA
   hdb7 : FAT16 - 2 GB                  K: FAT16 [2 GB]     IMATGES
   hdb8 : NTFS - 21 GB                  L: NTFS  [20 GB]
  hdb4 : Linux - 19.952 MB (20 GB)

• Windows 2000
  • System requirements
    Pentium-133 MHz and 64 MB RAM and 2 GB HD with 650 MB free space in HD.
  • All downloads. See SP3 !!!
    And support !
  • Tips and tricks
    And Resource Kit : ApiMon, DH, DiskMap, Drivers, Extract, Pstat, ...
  • W2K Office FAQs

  • Filesystem : NTFS ?
    Any limitation ?
    FAT32 : partitions < 36 GB
    NTFS : disk < 80 GB
  • Search
  • Tools
  • Prod doc
  • IBM :
    • NTinfo
    • Whistler

• Linux 7.2
  • 1024 cylinder limitation => how many MB's is it on my PC ?
  • Linux primary partition position vs W2000
  • use LILO with lba32 option

• Boot Magic or LILO or BOOT.INI ?

• Games (windows only)
• Shared files (as MP3)
• Create "Emergency Repair Disk", [ERD]
  Go Start, Programs, Accessories, System Tools, then Backup
  *** Test it !!! ***

• Create Boot Magic's "Rescue Diskette"
  Go Start, Programs, Boot Magic, then Create Rescue Diskette

• FixPacks :
  • install SP2, required by Logitech QuickCam.
    ATAPI.SYS error - remove "Daemon Tools" ... (?) Buggy driver ?

ListModem output, under W98 (does not identify under W2000) : [URL, sota "identify your modem]

=====================================================================
=              SYSTEM INFORMATION                                   =
=====================================================================
Date         : 10/28/2003
ListMdm Ver  : 1.6
Windows OS   : Microsoft Windows 98
Build Number : 4.10.2222

=====================================================================
=              RESULT OF MODEM QUERY                                =
=====================================================================
NUMBER OF MODEMS FOUND = 1

MODEM #1:
  PCI CONFIGURATION INFORMATION READ:
     VENDOR ID              : 14F1
     DEVICE ID              : 2F00
     SUBVENDOR ID           : 14F1
     SUBDEVICE ID           : 2004
     REVISION ID            : 01

  DEDUCED INFORMATION:
     VENDOR NAME            : CONEXANT
     DEVICE NAME            : HSF CHURCHILL DATA/FAX
     SUBVENDOR NAME         : ACTIONTEC, ZOLTRIX, ACEEX, TAICOM OR ASUS --
                                   HTTP://WWW.ACTIONTEC.COM/,
                                   HTTP://WWW.TAICOM.COM,
                                   HTTP://WWW.ASUS.COM.TW/COMPANY/.
        FOR 14F1/ICH GO TO -- DELL-HTTP://SUPPORT.DELL.COM/US/EN/INDEX.ASP
     MODEM TYPE             : HSF
     WINXP INBUILD SUPPORT  : YES

ScanModem output : [URL, sota "identify your modem]

--------- lspci scan ----------------
00:00.0 Host bridge: Intel Corp. 82850 850 (Tehama) Chipset Host Bridge (MCH) (rev 04)
00:01.0 PCI bridge: Intel Corp. 82850 850 (Tehama) Chipset AGP Bridge (rev 04)
00:1e.0 PCI bridge: Intel Corp. 82820 820 (Camino 2) Chipset PCI (rev 04)
00:1f.0 ISA bridge: Intel Corp. 82820 820 (Camino 2) Chipset ISA Bridge (ICH2) (rev 04)
00:1f.1 IDE interface: Intel Corp. 82820 820 (Camino 2) Chipset IDE U100 (rev 04)
00:1f.2 USB Controller: Intel Corp. 82820 820 (Camino 2) Chipset USB (Hub A) (rev 04)
00:1f.3 SMBus: Intel Corp. 82820 820 (Camino 2) Chipset SMBus (rev 04)
00:1f.5 Multimedia audio controller: Intel Corp. 82820 820 (Camino 2) Chipset AC'97 Audio Controller (rev 04)
01:00.0 VGA compatible controller: ATI Technologies Inc: Unknown device 5157
02:01.0 USB Controller: NEC Corporation USB (rev 41)
02:01.1 USB Controller: NEC Corporation USB (rev 41)
02:01.2 USB Controller: NEC Corporation: Unknown device 00e0 (rev 02)
02:0b.0 Communication controller: Conexant HSF 56k HSFi Modem (rev 01)
02:0c.0 Ethernet controller: MYSON Technology Inc: Unknown device 0803
02:0d.0 Multimedia video controller: Brooktree Corporation Bt878 (rev 11)
02:0d.1 Multimedia controller: Brooktree Corporation Bt878 (rev 11)
-------------------------------------

See Infca for more !

CD	Misc	Key
Intel Desktop Boards
ATI Radeon drivers
Matsonic	Utilities : DJ,
Zaapa	Modem drivers
XP support disk	Upgrade kit
Key Maestro	RF KBD and Mouse drivers
LG Nero 5.5.8.3
Cyberlink Power DVD XP		CD-key = MV47694714138242 S/N = 18446027 ( *U101U101)
IVI Win-DVD 2000		S/N = GMR22NHUK17EJA3
Intervideo Win-DVD		S/N = YL0J7OUWYYVRA1W
Rune	Human Head game
EresMas

• DOS - 2GB FAT

• W2K - 2GB NTFS
  Bé, eren FAT32 (per a que el floppy W98 veiés la partició), i vaig fer el canvi a NTFS al instalar W2K (as Jordi , 7/3/2003).

• SP3

• Intel CD - DirectX 8.1

• ATI drivers - 1280x1024x32 bit @ 75 Hz

• Caesar III - 20 GB NTFS

• WinZIP

• Eth0 floppy

• Modem
  Xip : Conexant HSFi CX11252-11 E227677.1
  Path : H:\conexant\internal\v.90\ not controlless
  ATI3 : "Soft56V_B2_1_V5.03.00"

• Nero

• WiFi : Edimax EW-7115 U, driver NETVUSBR.INF
  AdHoc, ch 10, SSID any, BSSID = 02.00.34.BF.F0.29, IP = 8.9.10.11/253 exp 3.0

• SuperJPG

• Office 2K

• SendTo TS (Folders &)

• Rexx for W2K (DemoPkg 36 - 1Q99, CD 5, ObjRexx fot NT)

• TV card : AVerTv (S/N : D 726674579, xip bt878A)
  Software :
  • MoreTV 3.53
  or
  • Pubs 2, v 0.912 (Pubs 3 no va sota W2000)
  and
  • CplusWin 3.61

  Links
  • www.avermedia.es - FAQ 13
  • www.aver.com.tw - HW
  • www.tv-cards.com - messageboard (sebastia)

• SuSE 8.1 => NTOSKRNL.EXE missing
  The reason was that an fdisk program had changed the order of entries in the partition table. The cure was to experiment with the partition number in boot.ini until it could boot.
  Use TeraByte's EditBINI for NTFS (not FAT32) !
  As it was FAT16, it worked again when changed boot.ini to
  [boot loader] timeout=9 default=multi(0)disk(0)rdisk(0)partition(4)\WINNT [operating systems] multi(0)disk(0)rdisk(0)partition(3)\WINNT="Microsoft Windows 2000 Professional" C:\="PC-DOS"
• To restore the W2K boot sector :
  • need W2K (4) boot diskettes : run makeboot.exe from the boot disk directory on the W2K Pro CD-ROM.
  • need W2K ERD
  • boot the 4 W2K boot flopys
  • select the option to repair a damaged W2K Pro installation. The system will prompt to insert the ERD. The W2K Pro setup will replace the files on the boot partition.

  See this article

• To restore the XP boot sector :

• boot SuSE 8.1 from W2K
  Read some RedHat advice

• Windows Media Player 9 from here
  Still does not download AVI codecs => will go DivX

  • download DivX 5.1.1 Bundle or just 2.5.1 player.
    Codecs : mydivx.com
  • development
  • users

  Also, try to use gSpot to determine the codec needed for a file and the codecs on your computer (free). WMP mini FAQ and hint : using mplay32.exe under W2K usualy tells you what video codec is missing. Get them here.
  Maybe control panel, multimedia, devices, video compression codecs ?

   WMP for example can use DMO (DirectMedia Object), VFW, or DirectShow codecs (depending upon version).
   *Only* VFW codecs show up in the Multimedia list.


  Now I have
  • WMP (mplay32) v 5.0
  • WMP (mplayer2) v 6.4.09.1121
  • WMP v 9.00.00.2980

• DivX
  Their codecs make WMP9 run properly ! Others

• caixa de ritmes : Hammer Head Rhythm Station ( *.hh and *.hub ).
  Que tal un Virtual Studio ? URL inicial, JIC.
  PropellerHeads
  CoolEdit for mixing.
  Sonic Foundry Acid PRO 4

• WiFi [Gener 2005]

• W2K - member of Domain / WorkGroup. HostName := SEBASXP4
  W95 - Red - Identificacion.

• P90 Internet Connection Sharing : propiedades de "Internet" + Configurar LAN + "Compartir"

• Seagate Ultra ATA, Barracuda 7200.7 Model ST 3200822A, S/N 3LJ26BD0, P/N 9W2844-301, Config A5C-07, Firmware 3.01

  url : 8,5 ms (avg) seek time, 7.200 rpm, Ultra ATA/100 interface C/H/S = 1024/256/63

• Transfer rate ? Tool to measure it ?? [FT]

  Product manual : sustained data transfer rate = 58 Mbytes/sec.

• BIOS detects ST 3200822a as 190.782 MB - correct ( ST 360021A as 57.241 MB )

• BM requires a FAT32 partition !!!
  Dont create it as Primary ! It has to be Logical !! Otherwise, it gets Hidden by BM at BootTime, so you are not able to Configure it, neither Uninstall it !!!

• BM 8.0 says
  You are adding an operating system to the menu which is beyond the first hard drive. You may need to enable Advanced Partition Hiding in order for it to boot correctly.
  Es fa mitjançant "Options" del BM 8.0 + "Advanced Partition Hiding".
  Pero ... al menu BM inicial surt "Unavailable" ...

• Canviant el ordre mitjançant la BIOS, el nou disc no bota. Diu
  Starting ONTRACK.
  Seagate Technology LLC - DiskWizard
  DDO v9.56A
  Press spacebar to boot from diskette ...
  OK - create 2 floppys, v 10.45 from dwse_en.exe 3.327.734

• PartitionInfo diu
  • disk 1 = 57.239,4 MB
  • disk 2 = 131.069,4 MB :
    • 1 x NTFS de 100 GB (Pri, Boot), 204.796.557 sectors from sector 63
    • 31 GB Unallocated, 63.633.465 sectors from sector 204.796.620

• Seagate Instant Answers ...

  To support drives over 137 GB, your computer and operating system must support 48-bit logical block addressing (LBA)

  Aixó es pot fer de dues maneres :
  • W2K + SP3 + run DiscWizard 2003
    or
    DiskWizard (floppy) + WXP + DiskWizard4Windows [P4+200GB]
  • Microsoft Knowledge Base Article 305098 48-bit LBA support for ATAPI disk drives in windows 2000
    • ATAPI.SYS version 5.0.2195.4529 - jo tinc 5.0.2195.5376 !
    • HKLM/System/CCS/Services/Atapi/Parameters/EnableBigLba := 1 ; (REG_DWORD, value 0x1)

HKLM/System/CCS/Services/Atapi/Parameters/EnableBigLba := 1 ; (REG_DWORD, value 0x1)
• Després de canviar EnableBigLba, PartitionInfo diu
  Disk 2 = 190.779,7 MB
  amb una partició NTFS de 100 GB (amb el XP botable) i 90,8 GB "Unallocated" !!!

• Install XP :
  • put as Master at Primary IDE
  • format using 2 x DiskWizard floppys
  • boot from XP CD
  • K = sebas2
  • 5 x users : Sebastia + Karme + Nikolau + Arkadi + Irina
    Set passwords : Control Panel + User Accounts.

• Quan el XP va ok, instalo BM 8.0 Requereix una partició FAT32 per guardar la configuració ! La creo i es torna "Hidden" per ser "Primary", not Logical. Conclusió : no puc editar BM !
  Faig servir Disk Wizard - Utilities + Update MBR Boot code Alternativa : de on descomprimim el BM, a la carpeta "c:\Temp\BTmagic\Rescueme" hi ha un Setup per cear un floppy amb el PQboot, que treu el BM !
  Error 8257 - Error finding home partition.

• fer servir BOOT.INI (XP Master, Primary IDE; W2K Slave, Secondary IDE) : [ Origin : Patti MacLeod ]
  • Reviewing and Correcting Boot.ini Settings on x-86 systems :
    http://tinyurl.com/2aezd

  • Instead of manually editing Boot.ini, try running the bootcfg / rebuild command using Recovery Console. Descripción of the XP Recovery Console
    http://support.microsoft.com/default.aspx?scid=314058

  • Discussion about the Bootcfg command and its uses :
    http://support.microsoft.com/default.aspx?scid=291980

  • NTLDR and NTDETECT.COM : the XP versions will boot W2K, but W2K will not boot XP.
    http://support.microsoft.com/default.aspx?scid=315233

• [12102004] 60 GB disk doesn't want to be "Slave" on Secondary IDE. [but 10 GB worked fine ! CDRW was Master]

• BOOT.INI :
  [boot loader] timeout=10 default=multi(0)disk(0)rdisk(0)partition(1)\WINDOWS [operating systems] multi(0)disk(0)rdisk(0)partition(1)\WINDOWS="Windows XP" /fastdetect multi(0)disk(0)rdisk(1)partition(1)\WINDOWS="Windows 2K" /fastdetect

  Here "rdisk(1)" means "the second device in the boot sequence" !

•   Puc escollir de quin disc botar amb la BIOS ...
  • XP del 200 GB
  • W2K del 60 GB

Use http://shopping.yahoo.com/search ...

From http://www.extremetech.com :

Also, search Google for "High-End Gaming PC" ... http://www.sharkyextreme.com

May'06 : Toshiba Quosmio G35-Av650.

Jun'06 : http://www.tomshardware.com/2006/06/12/

Jul'06 : Data.ti diu que el producte de l'any es el Airis Signum J-179S. Jo no el trobo enlloc ...

GeCube homepage, AGP series :

• Radeon X1950 series
• Radeon X1650
• Radeon X1600
• Radeon X1300
• Radeon X800 XL
• Radeon X800 XT
• Radeon X800 GTOA
• Radeon X800
• Radeon X700
• Radeon 9600 PRO
• Radeon 9600
• Radeon 9550
• Radeon 9250
• Radeon 7000

nVidia homepage :

• GeForce 8 series
• GeForce 7 series
• GeForce 6 series
• GeForce FX
• GeForce MX
• nForce 600 series
• nForce 500 series
• nForce4
• nForce3

P4 W2K install sequence, March 2005

• W2K
• W2K fixes (SP3 + 835732)
• Intel CD (audio, USB) - not (Norton Internet Security, NTI CD-Maker).
• modem ( f:\driver\conexant\internal\Soft\v9092\w2000\ACRCST5.INF ) - SoftK56 data Fax Vioce SpeakerPhone CARP
• P4 ETH floppy (e:\p4\eth0\win2000\MTD80X.inf) Realtek RTL8139 PCI Ethernet adapter
  Control Panel + Sistema + Administrador de dispositivos + Adaptador de Red + Controlador + Actualizar Controlador + Instalar desde una ubicación específica
• ATI
• WiFi

XP software :

TLIST (Nov 2005)

• Win XP + SP2
• SB drivers (using XP "Update" only once)
• Firefox
• WinAmp
• WinRAR
• UltraEdit
• Office
• EPSON drivers & scanner
• Adobe Reader
• eMule
• SkyPe
• Azureus -> Vuze 4.1
• Java RTE 1.6.0_12
• VLC media player
• Messenger 8.1 : url

Borland C++

After downloading freecommandLinetools.exe [8.935.988 at c:\Borland] and installing Borland C++ 5.5, (include c:\Borland\Bcc55\bin in Path at System + Environment Variables) we have available : [c:\Borland\BCC55\bin]

       869.376 bcc32.exe
        69.152 brc32.exe
       168.992 brcc32.exe
       118.485 coff2omf.exe
       241.152 cpp32.exe
        19.456 fconvert.exe
       102.400 grep.exe
       326.144 ilink32.exe
       169.472 impdef.exe
       192.000 implib.exe
       114.688 make.exe
       589.824 TD32.EXE
       143.360 TD32INST.EXE
       261.120 tdump.exe
        61.440 tlib.exe
        73.728 touch.exe
        16.460 trigraph.exe

 -I"c:\Borland\Bcc55\include"
 -L"c:\Borland\Bcc55\lib"

 -L"c:\Borland\Bcc55\lib"

On-line help : BCB5TOOL.HLP

To enhance your Help system you can add any number of files from the Borland C++Builder 5 online Help set, including the core C++Builder Help file (BCB5.HLP), Standard C++ Library Help (BCB5SCL.HLP), C++Builder Language Guide Help (BCB5LANG.HLP), the C Runtime Library Reference (BCB5RTL.HLP), and the Errors Messages and Warnings listing (BCB5ERRS.HLP). All of these files are available for free download from the Borland C++Builder documentation site at http:\\www.borland.com\techpubs\bcppbuilder.

Borland URLs

[/]

• Borland Community URL
• Code Central Repository URL
• Searchable database of code, tips, etc URL [/]

• 05/03/2006 - Stop 0x0A
  with 0x6AEEFED1 0x00000002 0x00000000 0x804EA960

• 22/09/2005 - DXG.SYS produces Stop 0x08E. 31/10/2005 again.
  8E implies a malfunctioning driver
  g:\winsave\MiniDump\092205-01.DMP

  See Win Debug.

• 20/03/2006 - HELPSVC.exe produces 90% CPU.

   start -> run -> net stop helpctr.exe
   start -> run -> net stop helpsvr.exe



  Com puc saber qui l'engega ? Es troba a C:\WINDOWS\PCHEALTH\HELPCTR\Binaries

  Recommendation : In most cases this task terminates once the Windows Update terminates and/or you exit the Windows XP Help. It has been known, however, not to terminate itself and instead to run away with CPU usage, up to 90%, with the obvious impact on the PC's performance. If this happens regularly create a DWORD entry called Headlines and give it the value of 0, for the following Registry Key

  HKEY_LOCAL_MACHINE \ SOFTWARE \ Microsoft \ PCHealth \ HelpSvc \
  This disables the Headlines feature which simply means that your Help and Support Center headlines are never updated.

  url

  Fet - 22/7/2006.

  uSoft diu de posar SP2

  Com que torna a sortir (amb el eMule), faig un RENAME del HELPSVC.exe - 08/09/2006.

• 22/09/2005 - DXG.SYS produces Stop 0x08E. 06/11/2006 again.
