• conector RCA (Radio Corporation of America) - 3 conectors, Red, White and Yellow
  • señal analogica
  • rojo - R canal derecho
  • blanco - L canal izquierdo
  • amarillo - video compuesto
  • url

• cable S-video - analog, solo video, no audio - 4 pins
  • url
  • Hi ha un conector S-video de 7 pins

• component in : high quality video
  • Red + Blue + Green : Ci/Pi + Cd/Pd + Y
  • Red + White : 2 canals de audio
  • url

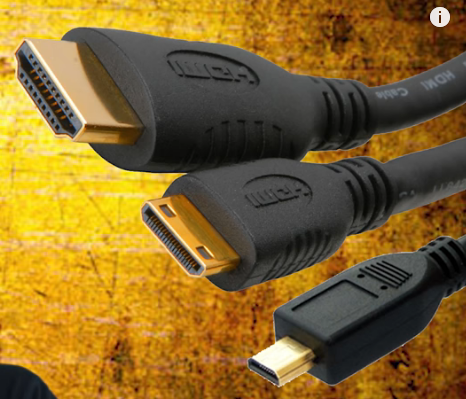

• HDMI, High Definition Multimedia Interface - both audio + video , uncompessed
  • (2009) HDMI 1.4, 3,820×2160, 4K, at 30 Hz - added network communication (100 Mbps snd and rcv ethernet)
  • (2017) HDMI 2.0, 4K at 120 Hz, 8k video at 60 Hz
  • HDMI is backward compatible with DVI-D, so a convert cable exists !

• Display Port, developed by VESA (Video Electronics Standard Association) - used for video -
  • wiki, url
  • DisplayPort 1.2 is capable of 3840×2160, 4K, at 60 Hz; or 1080p resolution at 144Hz
  • DisplayPort 1.3, announced in September 2014, is capable of 8K at 60Hz or 4k at 120Hz
  • March 2016, DisplayPort 1.4 - 8k at 60 Hz

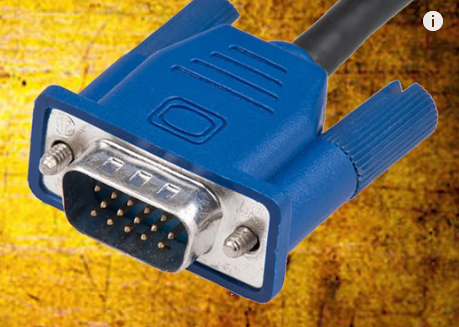

• VGA connector : from computer, 3 files de 5 pins, analog signal

• DV-I : Digital Video Interface url, url [***]

  Analog/ digital : a flat pin on one side of the DVI cable will tell you whether it's analog or digital

  • If it has a flat pin with four pins around it, then it is either a DVI-A or DVI-I cable
    DVI-I connector can send both a digital signal and an analog signal
    DVI-A which can only carry out an analog signal (4 pins around flat pin)

  • If there's only a flat pin, then it's a DVI-D cable
    DVI-D connector sends out a digital signal only

  Resolution :

  • dual link DVI has a max resolution of 2560x1600
  • single link DVI has a max resolution of 1920x1200

Good video
