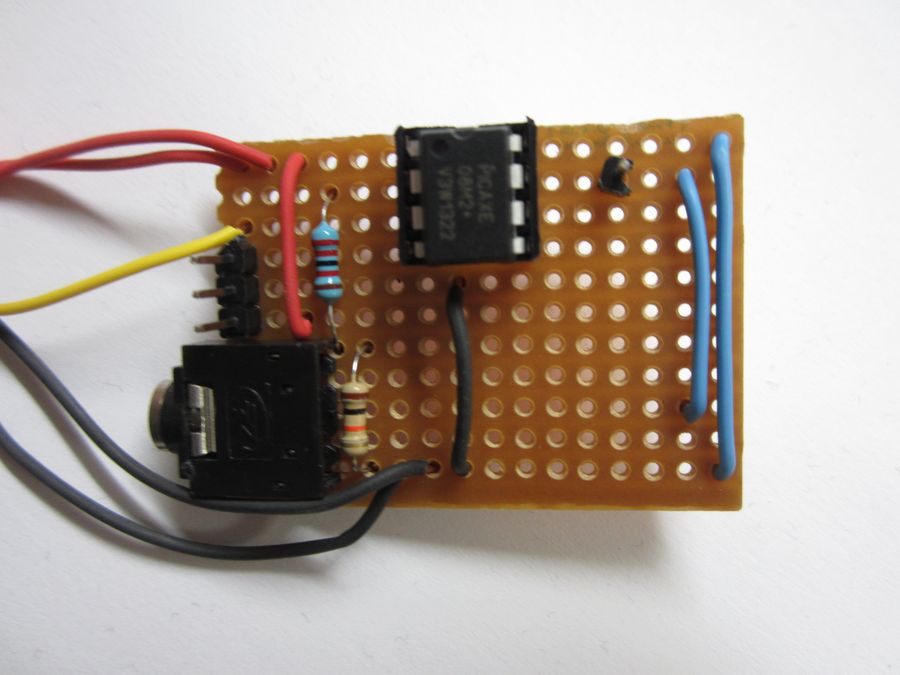

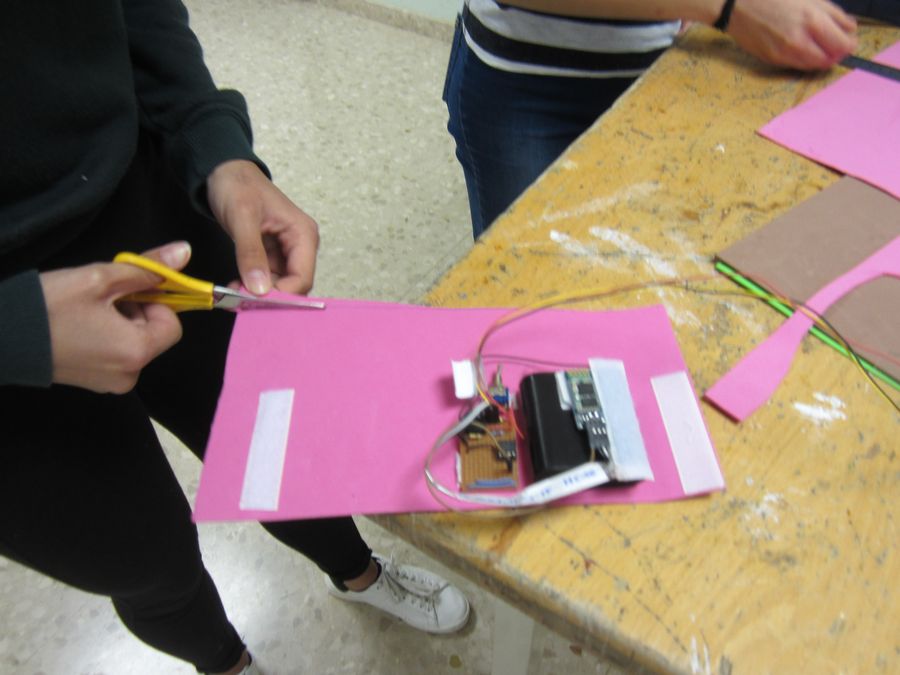

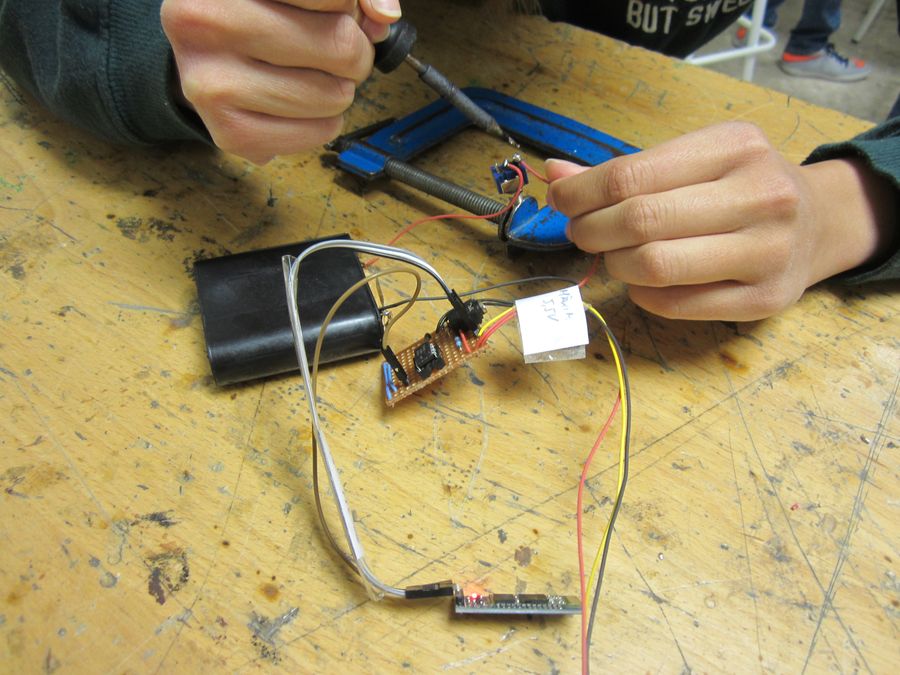

Device made by the students. BIG DATA

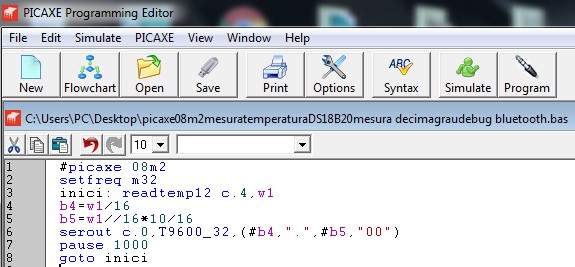

PICAXE programming editor

#picaxe 08m2
setfreq m32
inici: readtemp12 c.4,w1
b4=w1/16
b5=w1//16*10/16
serout c.0,T9600_32,(#b4,".",#b5,"00")
pause 1000
goto inici

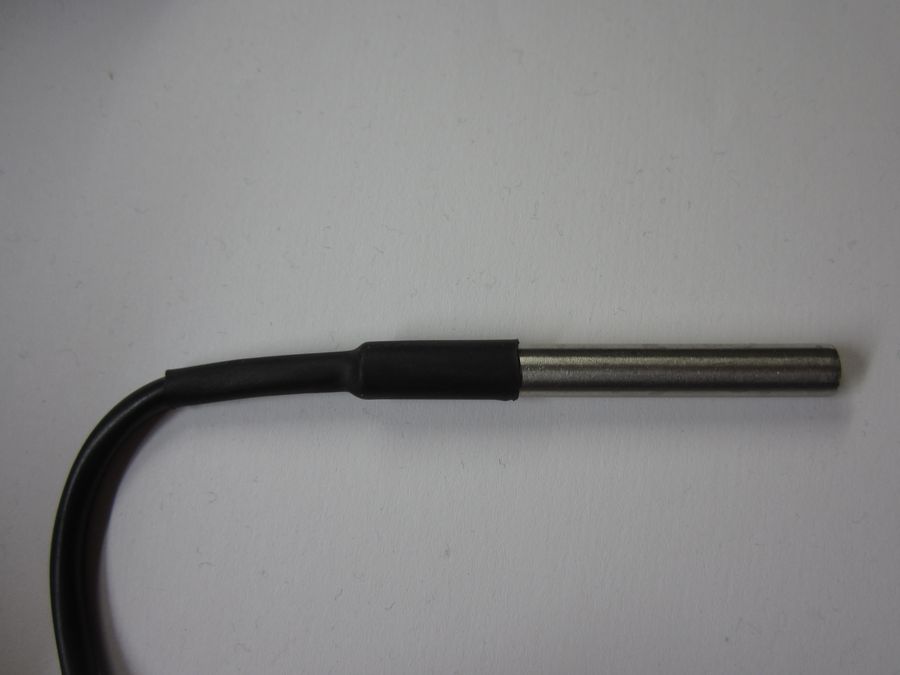

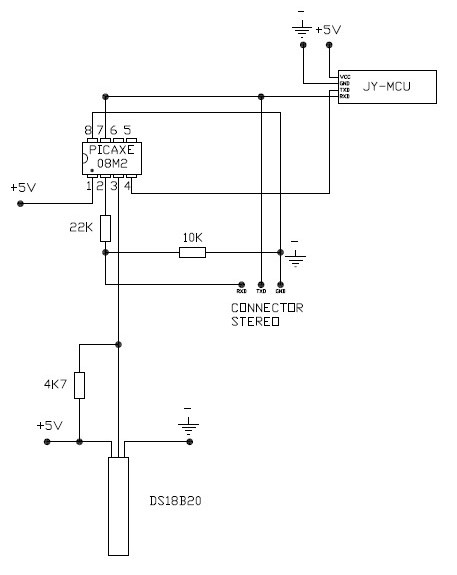

DS18B20 digital thermometer

Bluetooth

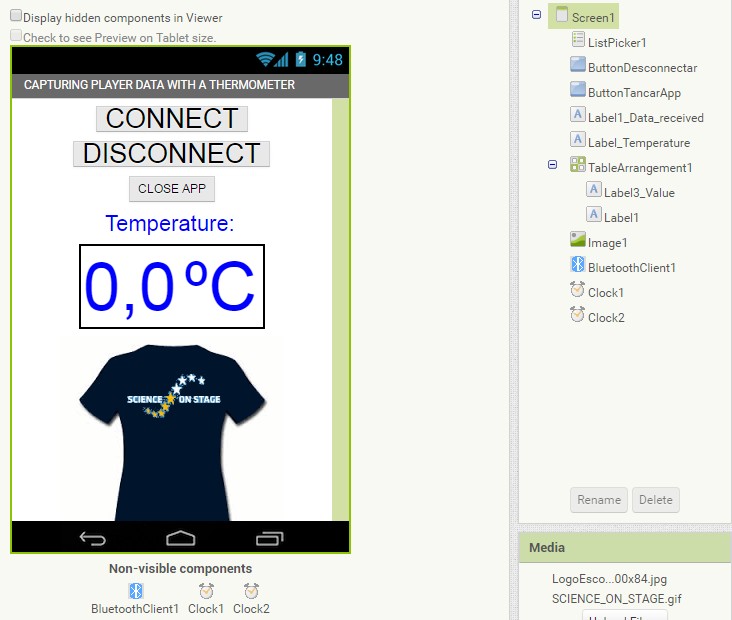

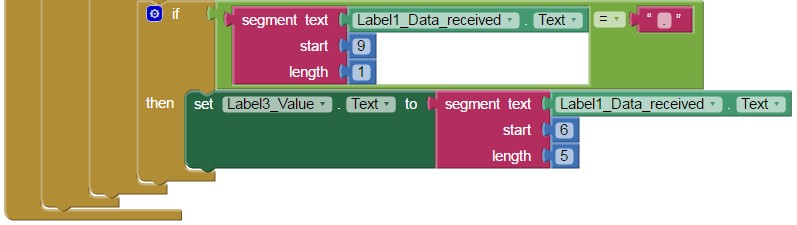

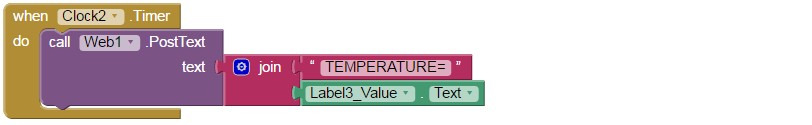

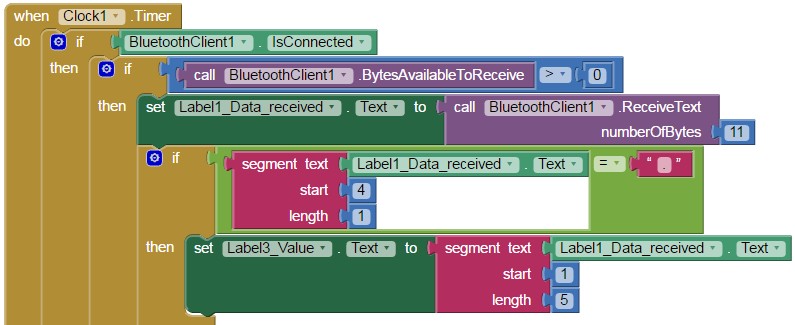

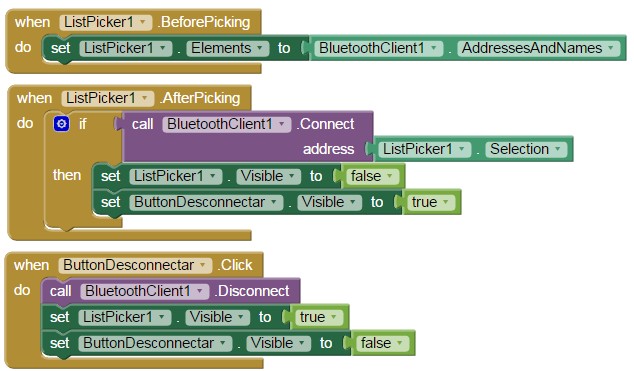

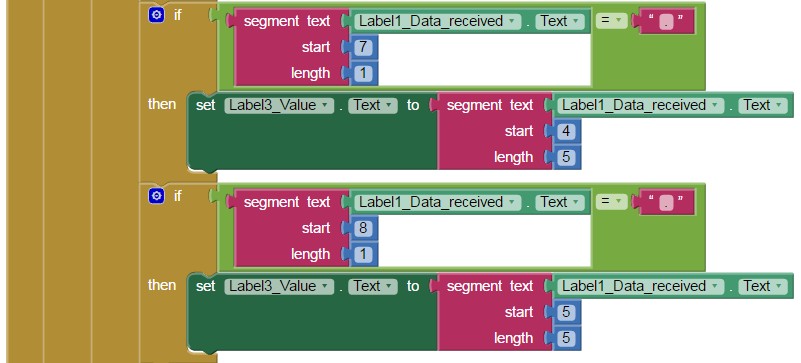

APP INVENTOR

web1: http://dweet.io/dweet/for/temperature

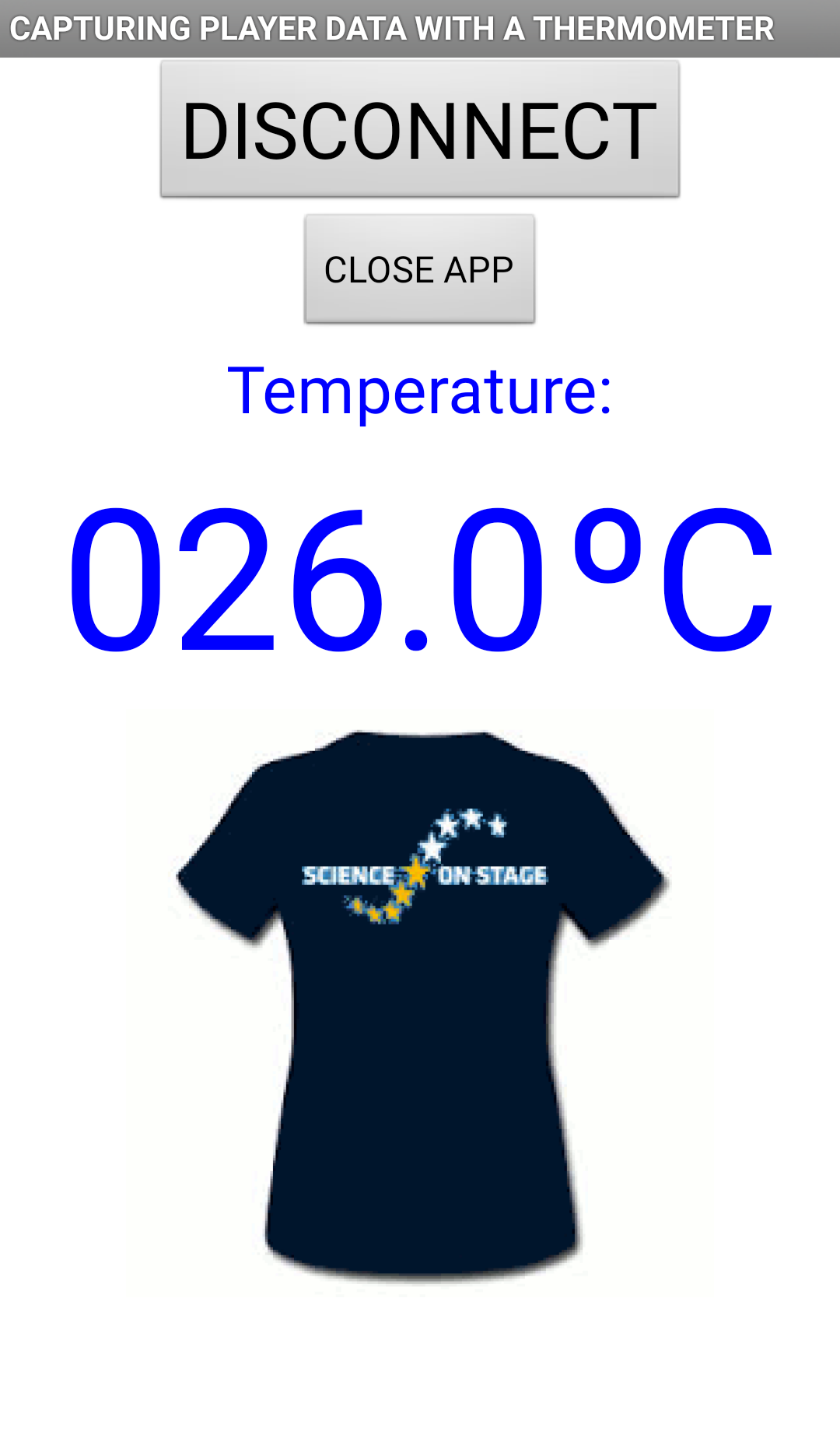

SMARTPHONE

without dweet.io (device_temperature.apk    device_temperature.aia )
with dweet.io (device_temperature_dweet_io.apk  device_temperature_dweet_io.aia )

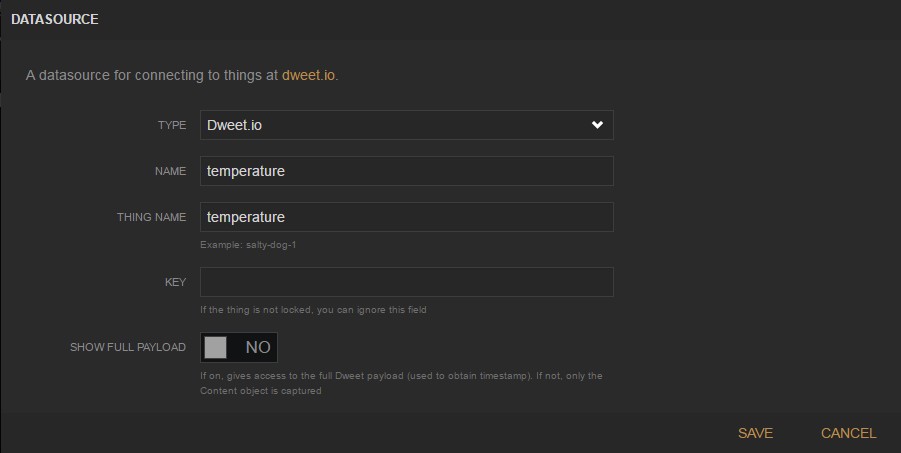

dweet.io

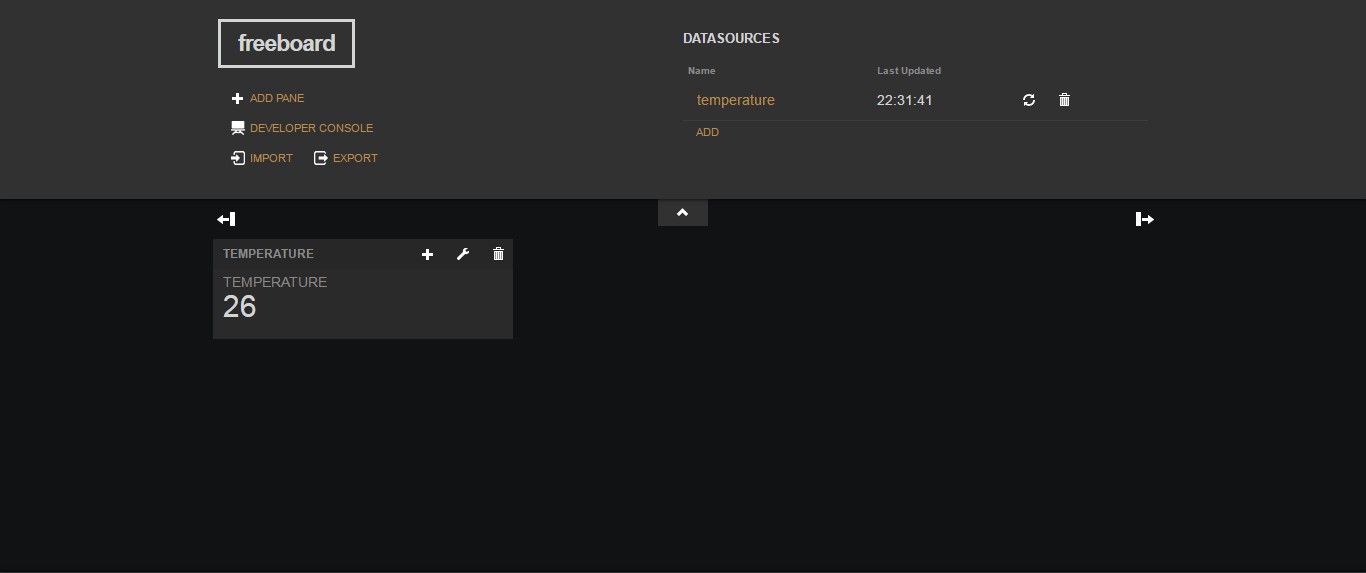

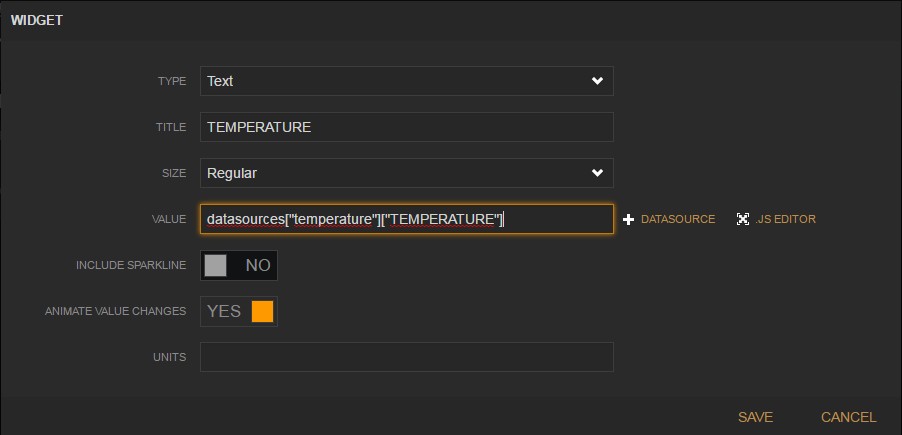

freeboard.io

VIDEO

LINKS



http://www.realtracksystems.com/WIMU Real track systems

http://go.sap.com/solution/industry/sports-entertainment/team-management/sports-one.html SAP Sports One
